Today, Wuxi RIHUAN Sensing Technology Co., Ltd. is here to introduce RIhuan electromagnetic locking safety door locks to you. They have outstanding performance, are affordable, and offer top-notch safety protection without compromise.

Electromagnetic locking safety door lock

The RH-M50 series can be easily and tightly locked by electromagnetic force. It features a planar electromagnetic locking structure, which can effectively solve the problem of door offset. Moreover, it is equipped with dual-channel Hall recognition. The RH-M50 series is not only keyless but also has a simple structure, significantly enhancing security. The ultra-compact body is easy to install, so you don't have to worry about the installation location. It can be installed and used even in a small space.

Product features

Electromagnetic force locks easily

The 450N locking holding force firmly locks the door

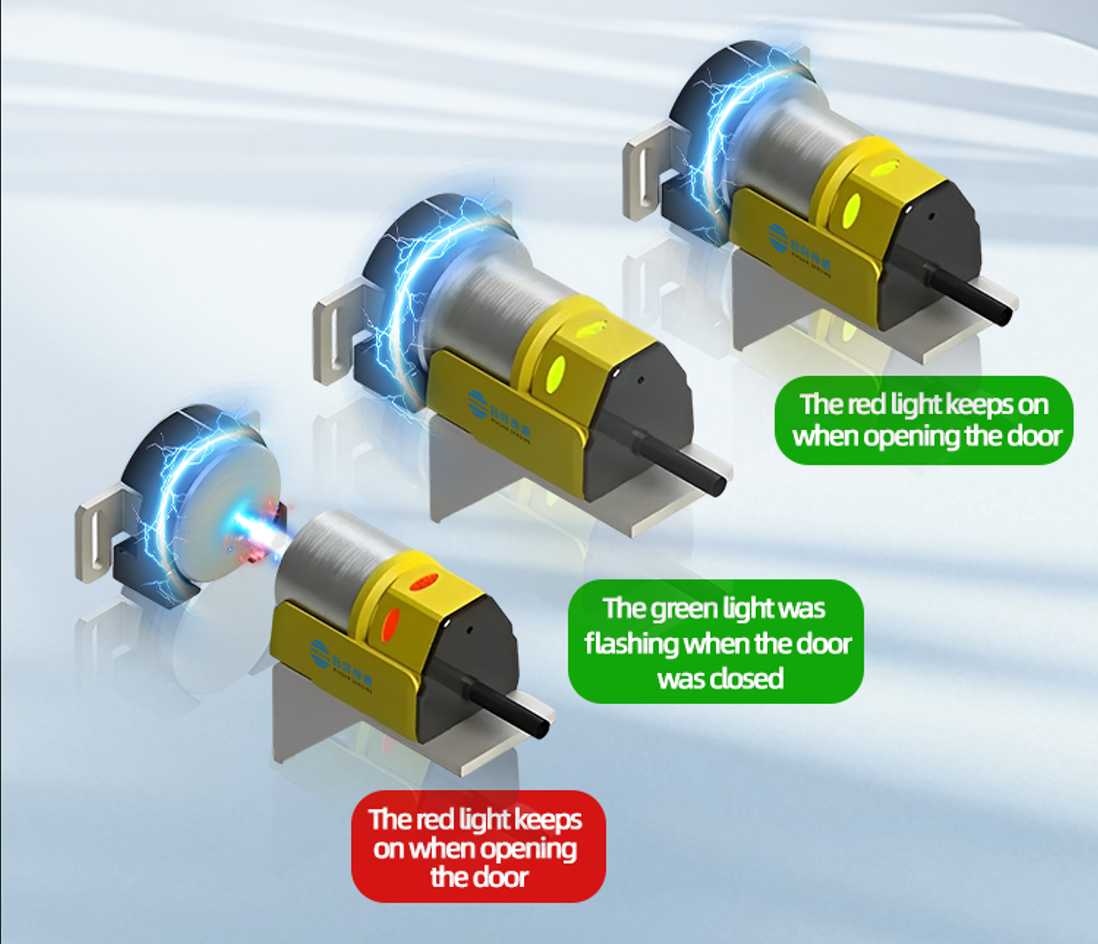

Three-sided indicator lights make the status clear at a glance

The indicator lights surround on three sides, allowing you to confirm the opening and closing of the door from all angles

The enclosure protection grade is IP65

It adopts a higher-grade dust-proof and water-proof structure and can be used in various environments

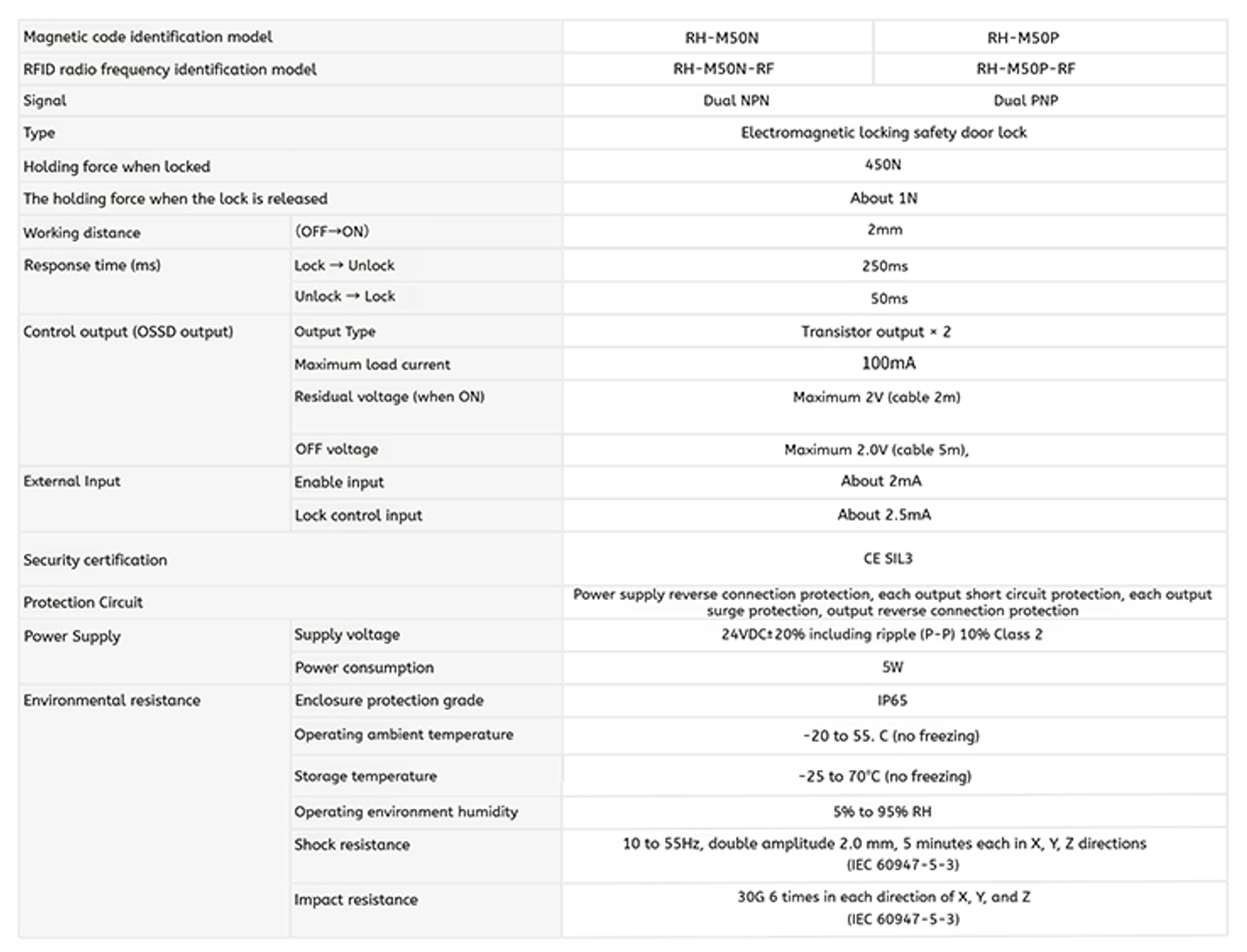

Product Information

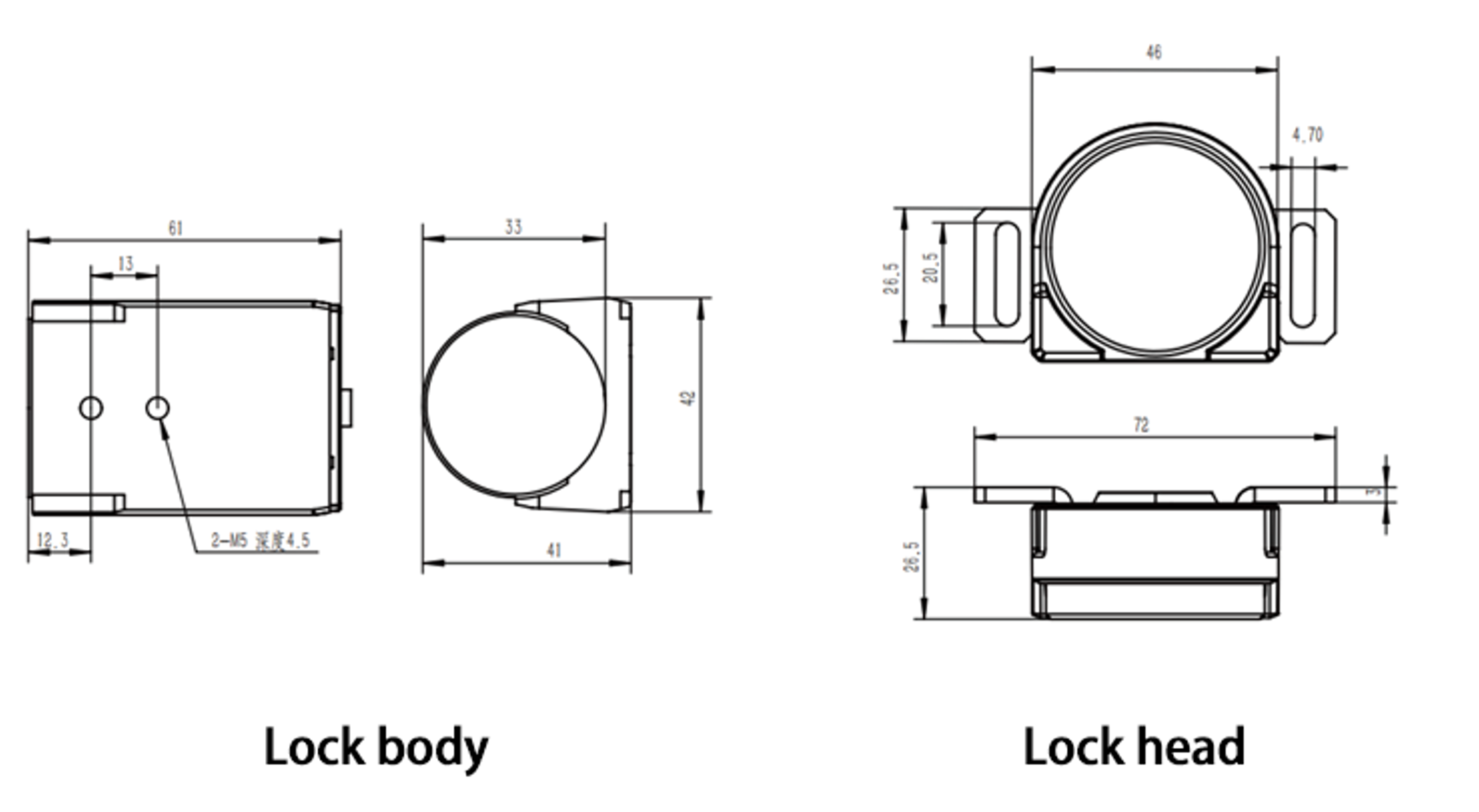

Dimension drawing (unit: mm)

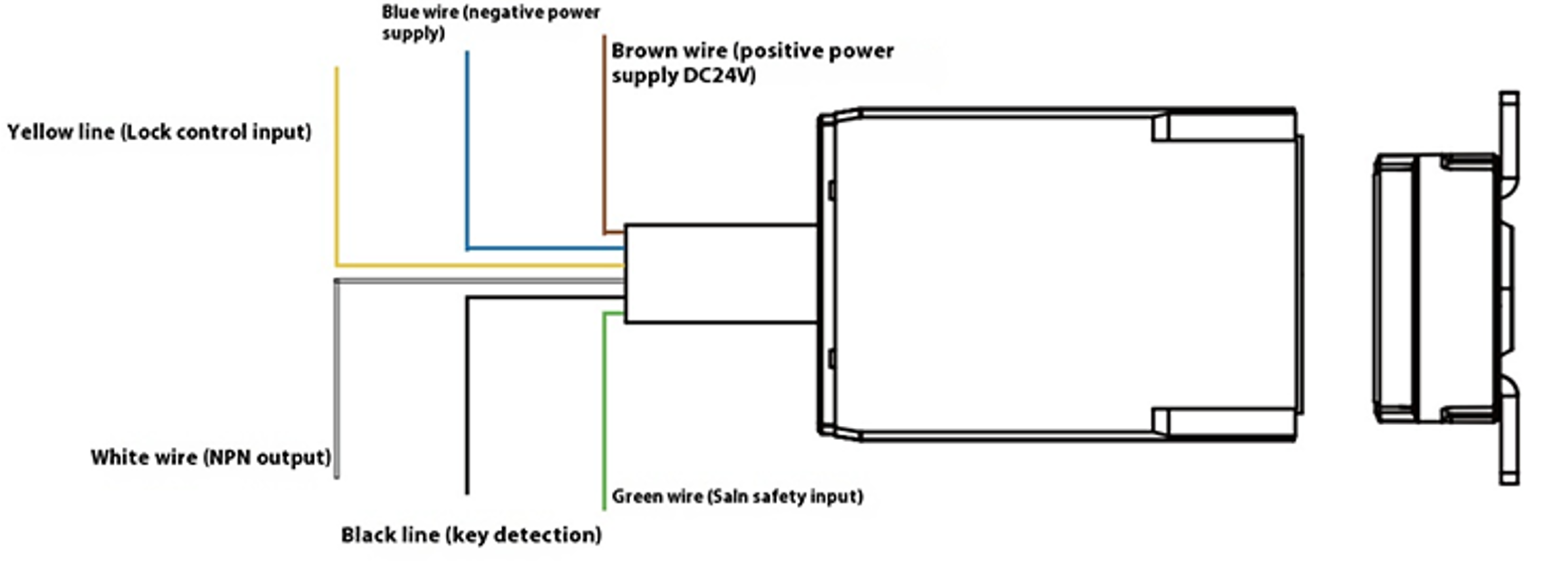

Wiring diagram

For more product details or to obtain customized solutions, please feel free to contact us at any time. Wuxi Rihuan Sensing Technology Co., Ltd. has always taken quality as its core and innovation as its driving force, dedicated to providing more reliable and cost-effective high-temperature detection solutions for the industrial automation field, and striving to become your trusted partner in high-temperature working conditions!
